Chaff and Flare Dispenser


As all fighter aircraft, the F-14 has the capability to dispense chaffs and flares to misdirect enemy missiles that are shot upon the aircraft. The chaff and flare dispenser is places next to the arresting hook below the "beaver" tail. Usually when not flying a combat mission the chaff and flare dispenser is not fitted to the tail, since flares are considered to be dangerous. Additionally, the F-14 can be equipped with more chaffs and flares by mounting the ECA (Expanded Chaff Adapter).


AN/ALE-29A Dispenser Module



Chaff TypeRR-129/RR-144
Flare TypeMk46/MJU-8B
/MJU-27/SM875
Empty Weight10.0 lbs
Loaded Weight21.5 lbs
Length9.27 in
Width7.75 in
Height5.83 in


Click on the thumbnails to view a close-up photo!
Dispensing Flares

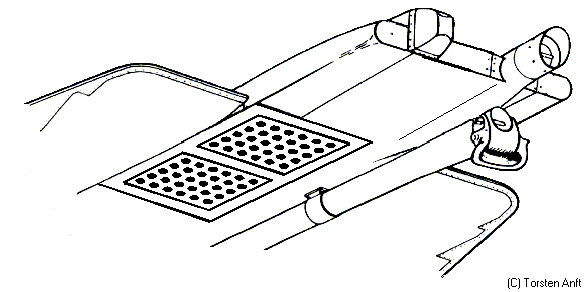

Chaff and Flare Dispenser
