Cranked Pylon and its Adapters |
| The cranked pylon consists of a multipurpose pylon and a range of four other pylons that can be attached to it to carry different weapons and pods. The oblique construction of the multipurpose pylon is due to the position of the main gear and the wing pivot center. |
| Additionally to the pylons that are shown below, the LANTIRN pod can be installed to the multipurpose pylon on the starboard side. |

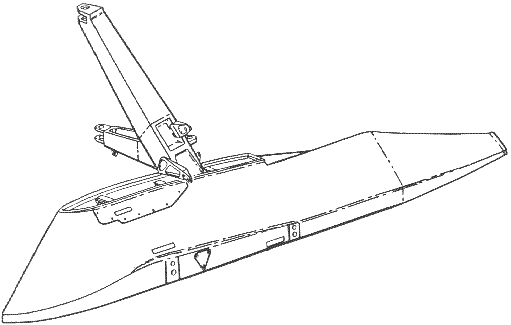

| Multipurpose Pylon | |||
| Weigth | Length | Width | Height |
| 244 lbs | 120 in | 34 in | 29 in |
|

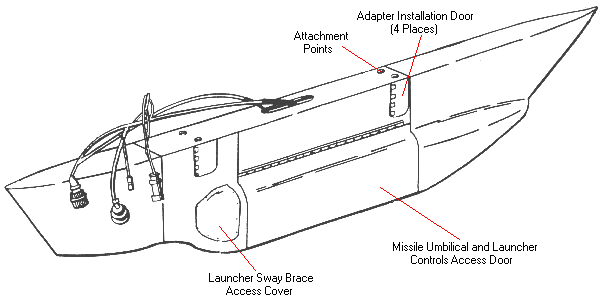

| LAU-92 Adapter for AIM-7 Missile | |||
| Weigth | Length | Width | Height |
| 54 lbs | 120 in | 9.5 in | 15 in |
 |

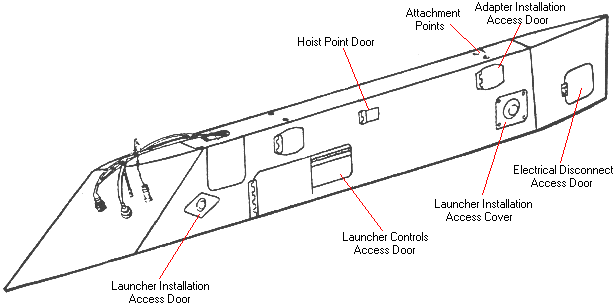

| LAU-93 Adapter for AIM-54 Missile | |||
| Weigth | Length | Width | Height |
| 100 lbs | 139 in | 8.25 in | 14.5 in |
 |

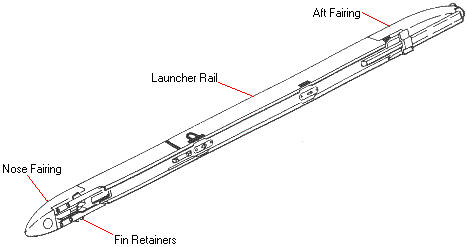

| LAU-7 Adapter for AIM-9 Missile and TACTS pod | |||
| Weigth | Length | Width | Height |
| 87 lbs | 111 in | 4 in | 5 in |
 |
 |
