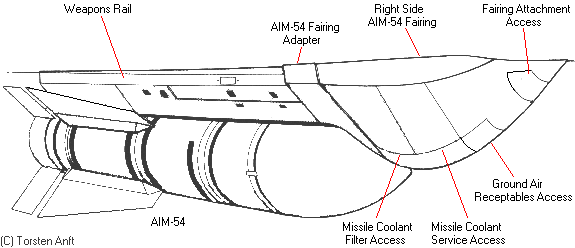

AIM-54 Fairing and Adapter
AIM-54 Fairing and Adapter |
|
| Right Fairing | Left Fairing | Adapter | |
| Weight | 50 lbs | 25 lbs | TBD |
| Length | 32 in | 32 in | 10 in |
| Width | 24 in | 24 in | 22 in |
| Height | 16 in | 16 in | 11 in |
 |

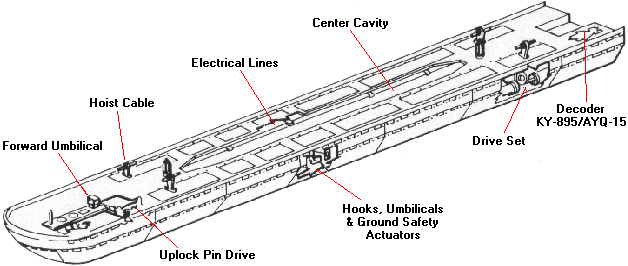

| Weight | 307 lbs |
| Length | 160 in |
| Width | 22 in |
| Height | 11 in |
| Instead of the AIM-54 missile the F-14 can carry bombs, the AN/ALQ-167 ECM Pod, the Expanded Chaff Adapter or the CNU-188 Baggage Container when the LAU-93 missile launcher is replaced by a fitting rack. |
 |
