MiG-21PF Walkaround

The MiG-21 Photo-Walkaround is courtesy of "The SMH / IPMS Scale Model Forum" in Houston.

These are excellent pictures by Roy McCartey to get an overview about the exterior details.
It shows the EAA's MiG-21PF. By the way, it's the same airplane that Ed Schneider used in his flight evaluation (see "Warbirds").
Note: The optical gun sight was replaced by American VHF radios.

Click on the little MiG to view the image

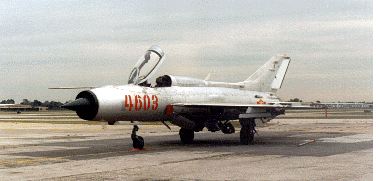

  1. An overall view of the Combat Jets' MiG-21PF. Photo: Roy McCartey
  2. Raised canopy. Note that the early PF's had forward hinged canopies. Photo: Roy McCartey

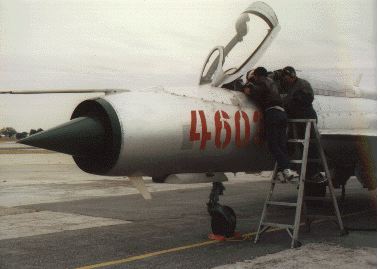

  3. The business end. Photo: Roy McCartey
  4. The center speedbrake. Photo: Roy McCartey
  5. Inside the cockpit. Photo: Roy McCartey

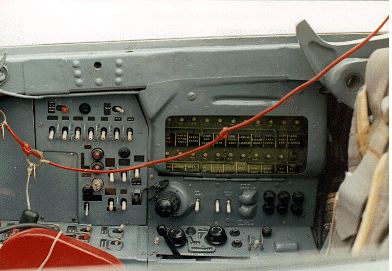

  6. Another internal view. Photo: Roy McCartey

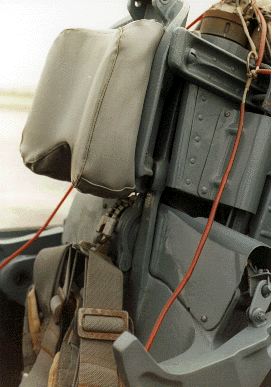

  7. Ejection seat headrest. Photo: Roy McCartey

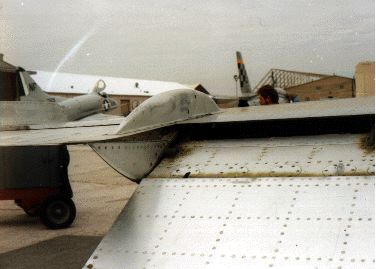

  8. The MiG's wing flap from above. Photo: Roy McCartey
  9. Another view of the flap. Photo: Roy McCartey

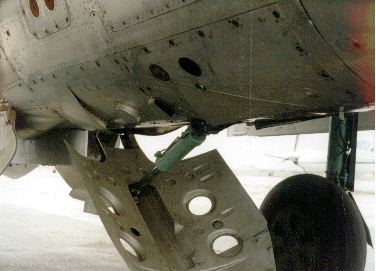

  10. The PF featured forward speedbrakes as well as the central one.. Photo: Roy McCartey

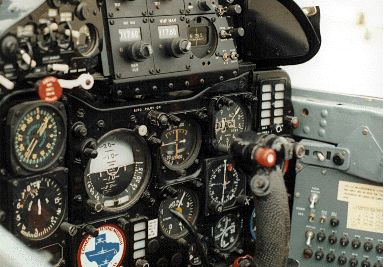

  11. The instrument panel. Photo: Roy McCartey
  12. The main landing gear. Photo: Roy McCartey
  13. The main landing gear well. Photo: Roy McCartey

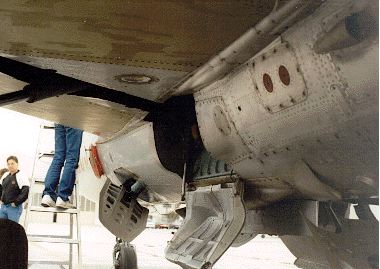

  14. Another view of the main gear. Photo: Roy McCartey
  15. The MiG's nosegear. Photo: Roy McCartey
  16. The radome/shock cone. Photo: Roy McCartey

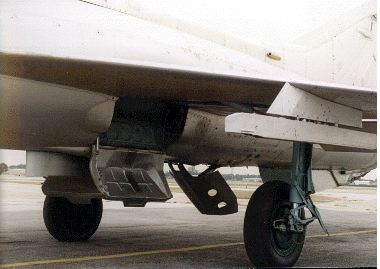

  17. The center speedbrake. Photo: Roy McCartey

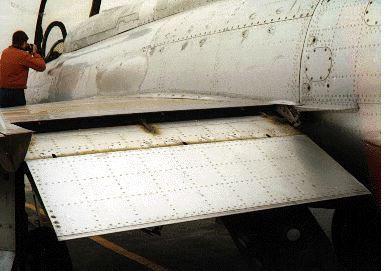

  18. The flap from below. Photo: Roy McCartey

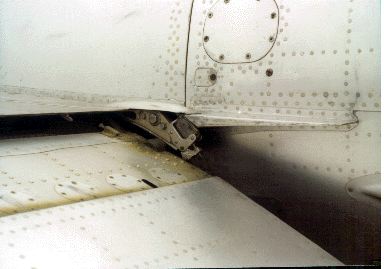

  19. the flap mechanism in detail. Photo: Roy McCartey

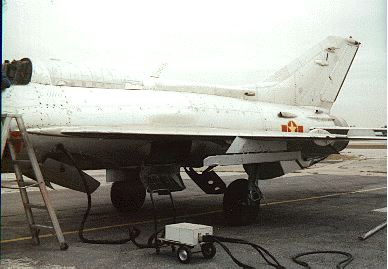

  20. Some of the MiG-21's support equipment. Photo: Roy McCartey
