F-14 Tomcat:Other:

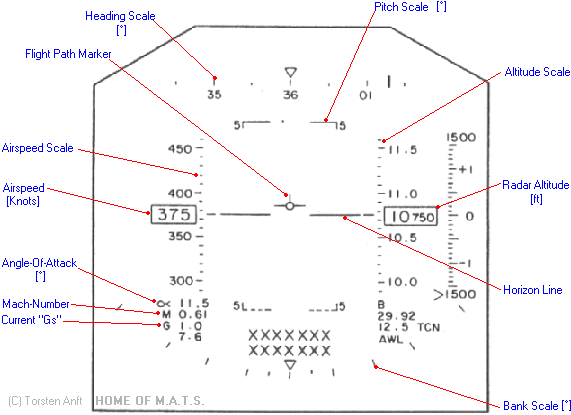

| Legend: | |
| Heading Scale [°] | Flight direction/compass with "36" = 360° = North. |
| Pitch Scale [°] | Angle between the aircraft's actual vertical flight direction and the horizon line. |
| Airspeed [knots] | 1 knot = 1.852 km/h = 1.151 mph. |
| Angle of Attack [°] | Angle between the aircraft's actual vertical flight direction and the aircraft's x-axis (where the aircraft's nose is pointing to). |
| Mach Number | Airspeed divided through speed of sound, depends on altitude (temperature and air pressure). Subsonic speed when Mach Number < 1, supersonic speed when Mach Number > 1. |
| Current "Gs" | A value describing the load that pilot and aircraft's structure experience during maneuvers. G = lift divided through aircraft mass. |
| Bank Scale [°] | The angle between the horizon level and the wings when the aircraft is turning. |
